Thông tin chi tiết sản phẩm:
|
| Vật liệu: | gốm oxit nhôm | Sức mạnh uốn: | 200-400Mpa |
|---|---|---|---|
| Điện trở cách nhiệt: | >1012 Ôm-cm | Mô đun của Young: | 200-400 GPa |
| Hằng số điện môi: | 9,6 | Sức mạnh điện môi: | 18-20KV/mm |
| Độ bền kéo: | 200-400Mpa | Tỷ lệ của Poisson: | 0,25 |

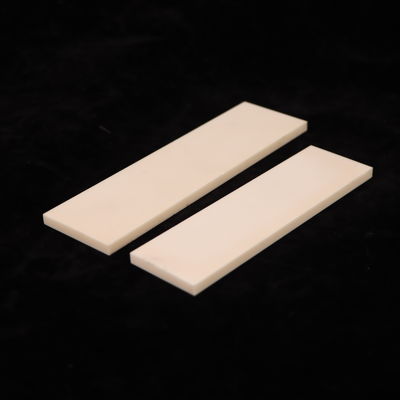

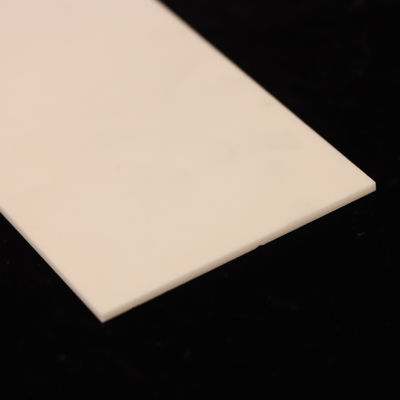

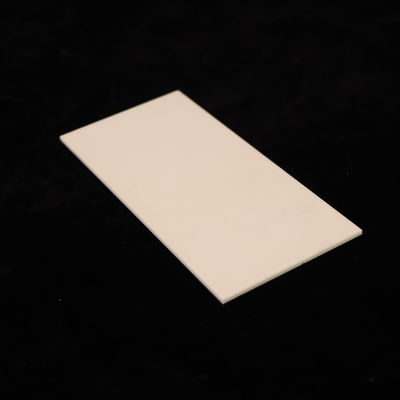

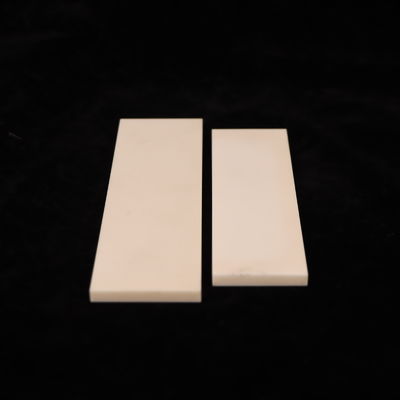

The Aluminum Oxide Ceramic product, also known as Alumina ceramic, is a high-performance material known for its excellent dielectric properties and mechanical strength. This product is specifically designed as a 95% Alumina ceramic plate, ensuring a high level of purity and consistency in its composition.
One of the key attributes of the Aluminum Oxide Ceramic product is its impressive Dielectric Constant of 9.6. This property indicates the material's ability to store electrical energy when exposed to an electric field, making it ideal for various electrical and electronic applications.
Another notable feature of this Alumina ceramic product is its high Dielectric Strength, ranging from 18 to 20 KV/mm. This high dielectric strength ensures that the material can withstand high voltages without breakdown, providing reliable insulation in demanding environments.
In terms of mechanical properties, the Aluminum Oxide Ceramic product offers a Tensile Strength of 200-400 MPa. This indicates the material's ability to withstand tensile forces before breaking, making it suitable for structural and load-bearing applications where strength is essential.
The Breakdown Voltage of the Aluminum Oxide Ceramic product is greater than 20 KV, further highlighting its excellent electrical insulation properties. This high breakdown voltage ensures reliable performance in high-voltage applications, enhancing safety and efficiency.
With a Density ranging from 3.75 to 3.9g/cm3, this Alumina ceramic material strikes a balance between strength and weight, making it suitable for a wide range of applications where a lightweight yet durable material is required.
In summary, the Aluminum Oxide Ceramic product, a 95% Alumina ceramic plate, offers exceptional dielectric properties, high mechanical strength, and reliable insulation performance. Whether used in electrical components, structural applications, or high-voltage environments, this product delivers consistent quality and performance, making it a versatile choice for various industrial and commercial applications.
| Technical Parameter | Value |
|---|---|
| Flexural Strength | 200-400 MPa |
| Thermal Conductivity | 25-35 W/mK |
| Density | 3.75-3.9g/cm3 |
| Compressive Strength | >3000 MPa |
| Dielectric Constant | 9.6 |
| Color | White |
| Material | Aluminum Oxide Ceramic |
| Breakdown Voltage | >20 KV |
| Poisson's Ratio | 0.25 |
| Dielectric Strength | 18-20 KV/mm |
KAMTAI KT-YHL Aluminum Oxide Ceramic, originating from China, is a top-quality product suitable for various applications across different industries. With ISO 9001 certification, this alumina ceramic substrate offers exceptional performance and reliability, making it a preferred choice for demanding environments.
The high flexural strength of 200-400 MPa and density ranging from 3.75-3.9g/cm3 make the KT-YHL ceramic plate ideal for high-temperature use. Its white color and impressive hardness of 9 Mohs ensure durability and aesthetic appeal in various scenarios.
Whether it's for industrial machinery, electrical components, or thermal insulation, this alumina ceramic plate excels in demanding conditions. The low thermal expansion of 8.9 X 10-6/K enhances its suitability for applications requiring stability across temperature variations.
With a minimum order quantity of 300PCS and negotiable pricing, the KT-YHL ceramic plate offers flexibility for different project scales. The packaging details in a wooden box ensure safe transportation and delivery within 30 days after payment, meeting tight project deadlines.
Payment terms via TT and a supply ability of 500,000PCS/month make it convenient for businesses to procure and utilize these high-performance alumina ceramic plates efficiently.
Our Product Technical Support and Services for the Aluminum Oxide Ceramic include:
- Troubleshooting assistance for any issues related to the ceramic product
- Recommendations for proper installation and maintenance procedures
- Information on the physical and chemical properties of aluminum oxide ceramic
- Guidance on the selection of the most suitable ceramic product for specific applications
- Support in understanding the performance characteristics and limitations of the product
